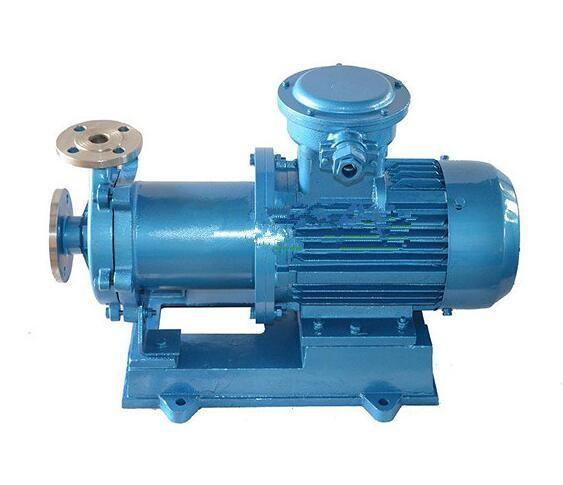

CQB Series Magnetic Drive Centrifugal Pump
The wet parts of this pump are made of full stainless steel
material to perform outstanding corrosion resistance to organic
acid, organic
compound, alkali, neutral solution and a great many of gases,
double helix carbon graphite bearing and hard alloy bearing are
provided with
good abrasion-resisting property to ensure the service life of
product, it is an optimal pump for handling corrosive mediums
without leakage.
OPERATION PARAMETER
Caliber: DN20~DN125mm
Capacity: 3.2~200m3/h
Head: 12.5~80m
Rotate speed: 2900r/min
Work temperature: 120
Viscosity: 100 mm2/s
Pressure: 1.6MPa
Motor power: 1.1~90kW
CQB Series Magnetic Drive Centrifugal Pump Model Ordering Code:
CQB 50 - 32 - 160
CQB---- Magnetic pump
50----Inlet diameter (mm)
32---- Outlet diameter (mm)
160----Impeller diameter (mm)
CQB stainless steel magnetic pump parameter
| Model | Caliber(mm) | Capacity | Head | Motor power | CQB pump Material | |
| Inlet | Outlet | (m3/h) | (m) | (KW) | 304 SS | |
| CQB32-20-125 | 32 | 20 | 3.2 | 20 | 1.1 | |
| CQB32-20-160 | 32 | 20 | 3.2 | 32 | 1.5 | |
| CQB40-25-105 | 40 | 25 | 6.3 | 12.5 | 1.1 | |
| CQB40-25-125 | 40 | 25 | 6.3 | 20 | 2.2 | |
| CQB40-25-160 | 40 | 25 | 6.3 | 32 | 3 | |
| CQB40-25-200 | 40 | 25 | 6.3 | 50 | 5.5 | |
| CQB50-40-85 | 50 | 40 | 12.5 | 8 | 1.1 | |
| CQB50-32-105 | 50 | 32 | 12.5 | 12.5 | 1.5 | |
| CQB50-32-125 | 50 | 32 | 12.5 | 20 | 3 | |
| CQB50-32-160 | 50 | 32 | 12.5 | 32 | 4 | |
| CQB50-32-200 | 50 | 32 | 12.5 | 50 | 7.5 | |
| CQB50-32-250 | 50 | 32 | 12.5 | 80 | 18.5 | |
| CQB65-50-125 | 65 | 50 | 25 | 20 | 4 | |
| CQB65-50-160 | 65 | 50 | 25 | 32 | 7.5 | |
| CQB65-40-200 | 65 | 40 | 25 | 50 | 15 | |
| CQB65-40-250 | 65 | 40 | 25 | 80 | 22 | |
| CQB80-65-125 | 80 | 65 | 50 | 20 | 7.5 | |
| CQB80-65-160 | 80 | 65 | 50 | 32 | 11 | |
| CQB80-50-200 | 80 | 50 | 50 | 50 | 22 | |
| CQB80-50-250 | 80 | 50 | 50 | 80 | 37 | |
| CQB100-80-125 | 100 | 80 | 100 | 20 | 15 | |
| CQB100-80-160 | 100 | 80 | 100 | 32 | 22 | |
| CQB100-65-200 | 100 | 65 | 100 | 50 | 37 | |
| CQB100-65-250 | 100 | 65 | 100 | 80 | 55 | |
